Gavita Pro 6/750e DE Full Grow Light Fixture

Features:

• Complete fixture
• Horticultural design
• Balanced fixture
• 400V lamp technology for high frequency electronic ballast

• Replaceable reflector

• Controllable output
• Double ended lamp
• High frequency electronic ballast
• Soft start
• No in-rush current
• Suitable for Gavita Master Controllers
• Plug & Play installation


In many rooms you just don’t have the height to run a 1000W fixture at 100%, and in other rooms you don’t need the intensity. Running a 1000W lamp at 750W all the time is a not a desirable situation as the lamp does not come to its full efficiency and the spectrum deteriorates. In those situations the 6/750 DE FLEX is the ideal solution, more efficient, cheaper and with a much better spectrum. We call it the 6/750 as the efficiency of the lamp, dimmed to 600W, is still really good: as good as any other 600W industry standard HPS lamp.
With the 750W lamp you can come almost a ft closer to your crop (a bit less in overlapping plans).

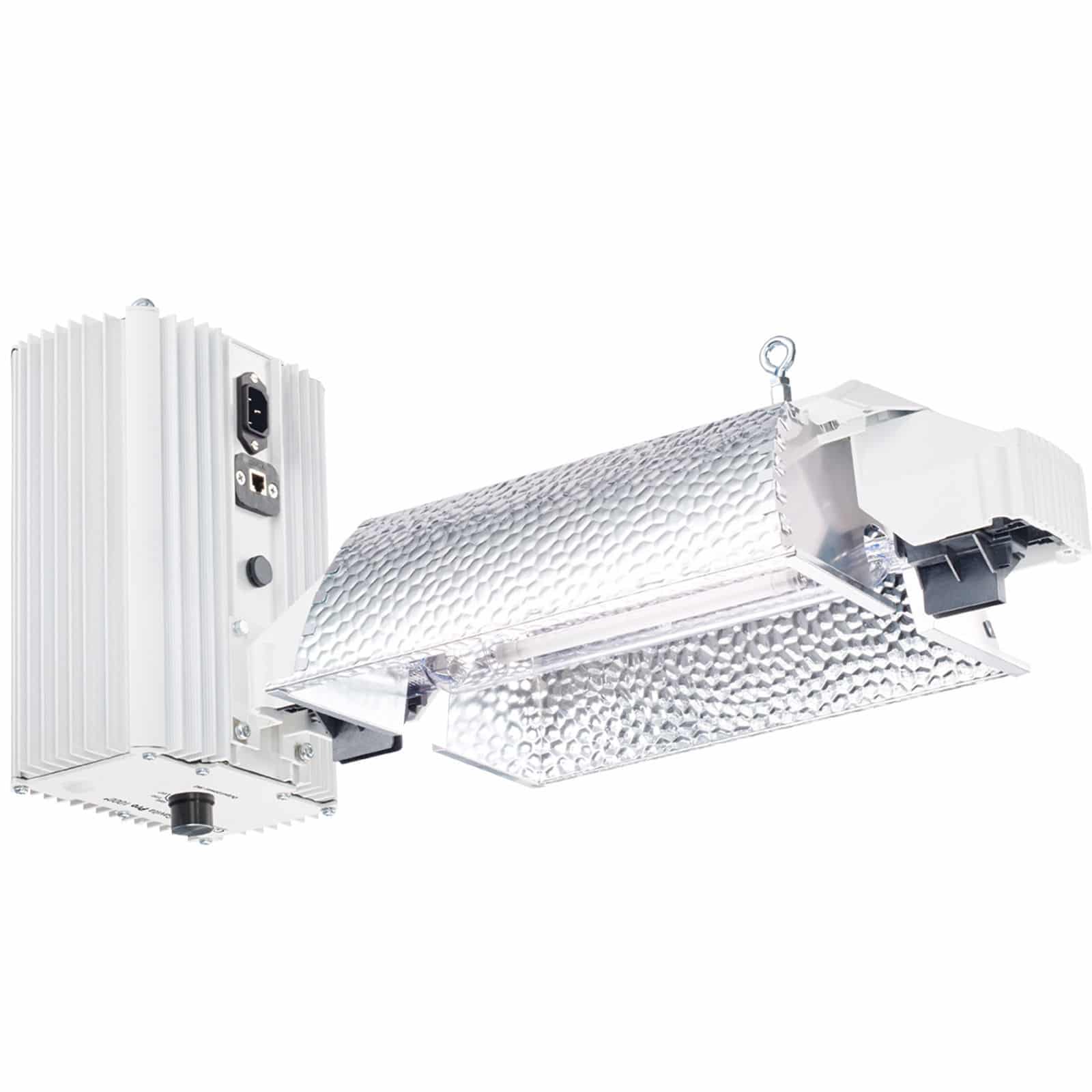

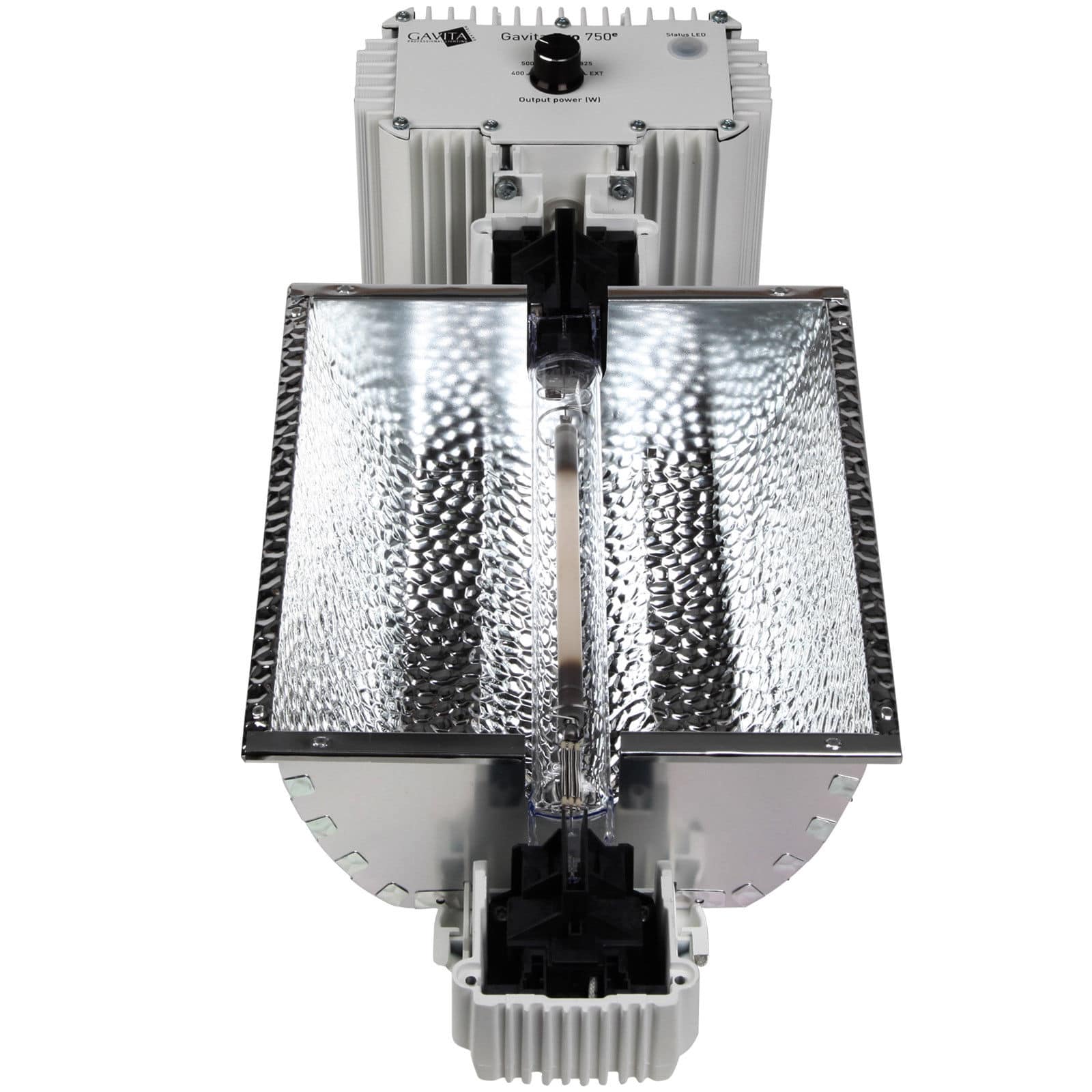

The fixture comprises of a ballast, reflector and lamp in one complete compact package. Made according to horticultural standards, the housing of the ballast is sealed and contains a gore-tex® plug to ventilate the housing, while keeping dust and humidity out.


Ballast output is either controlled by the Gavita Master controllers, or an external switch, allowing it to be adjusted to 400, 500, 600, 750 W, and 825 W boosted output. The Master Controller can centrally control the output hundreds of fixtures in a range between 375 and 825 W output power. Using the Master controller safeguards your valuable crop by the added auto-dim and auto-shutdown features, and completely automates your light control.
The high frequency ballast was specifically designed for the Gavita double ended HPS lamp, resulting in an accurate, optimal output, a stable burning lamp and a better light maintenance over time. The ballast is not suitable to run Metal Halide lamps.


The reflector is replaceable (we recommend to do this every year to two years) and there is a choice of replacement reflectors:


The HR96 DE for overlapping configurations, assuring optimal uniformity and penetration. This is the industry standard reflector delivered with the fixture.
The W 150 DE for wide configurations, where uniformity and lower light levels are required in large rooms. 150 degrees beam angle, for double ended lamps.
The M 110 DE SR for applications in single rows and small rooms, where a single reflector needs to create uniformity and high light levels. 110 degrees beam angle, for double ended lamps.
The spread of the Pro 6//750 with the HR96 DE reflector is about 3×4.5 ft (90×135 cm) at 2.5 ft distance in overlapping plans, providing light levels of up to 1000 µmol s-1 m-2.

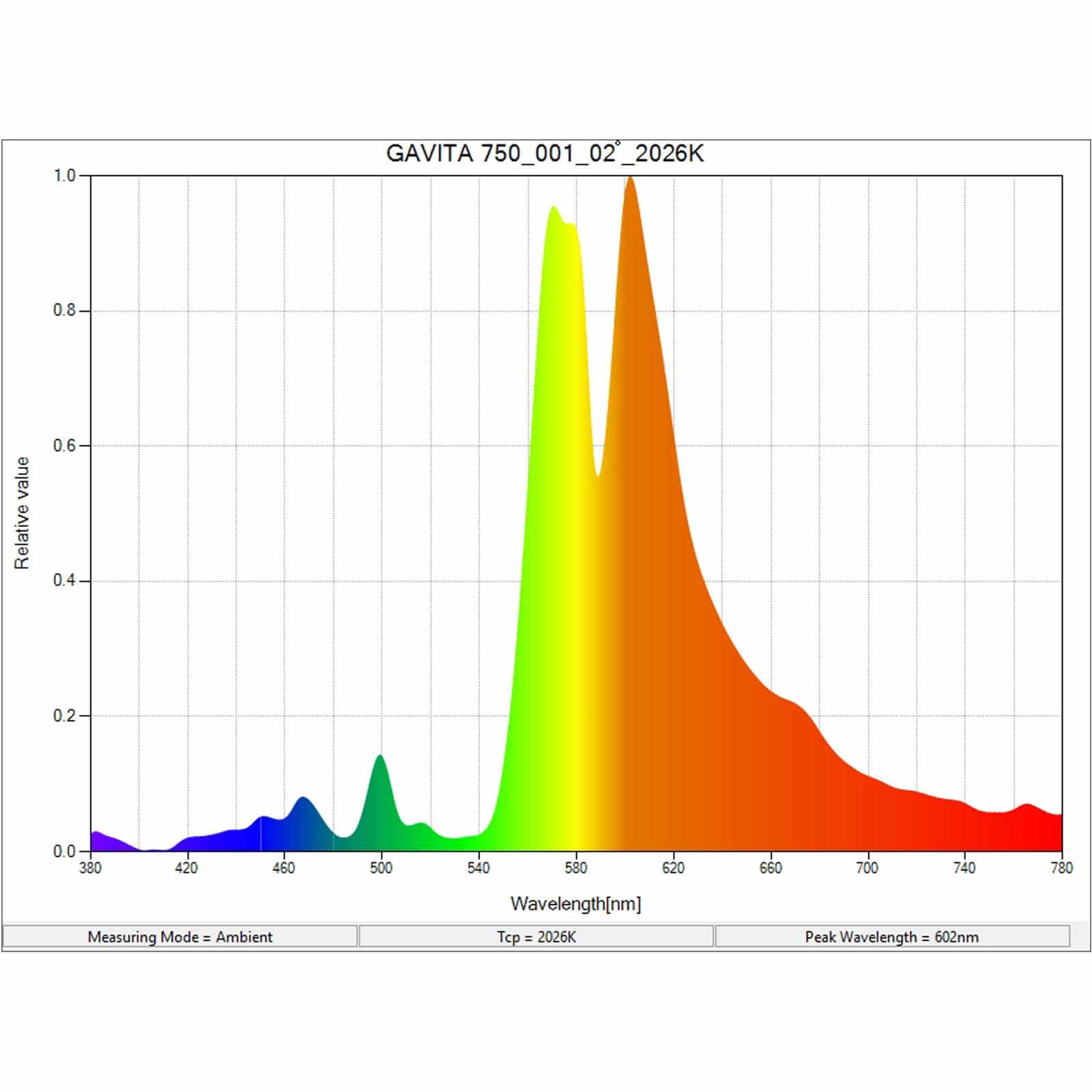

The fixture’s light source is a Gavita Pro 750W double ended HPS lamp, generating 1450 µmol s-1 of light. With a light maintenance of over 96% per 5000 hours you only need to replace it once a year.
Mounting is easy because the fixture is balanced and only requires two hanging points. For c-profile installations we have convenient brackets available.
