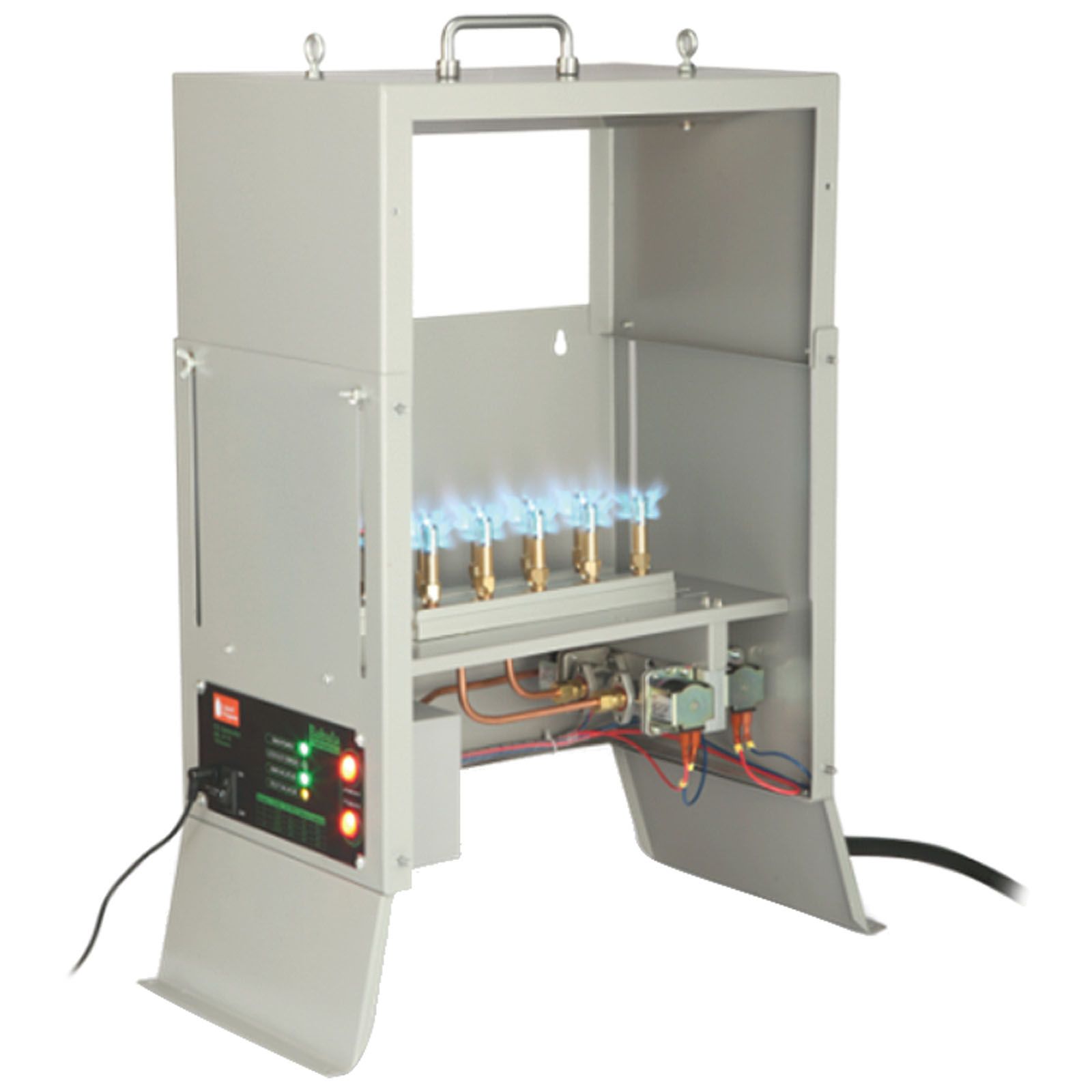

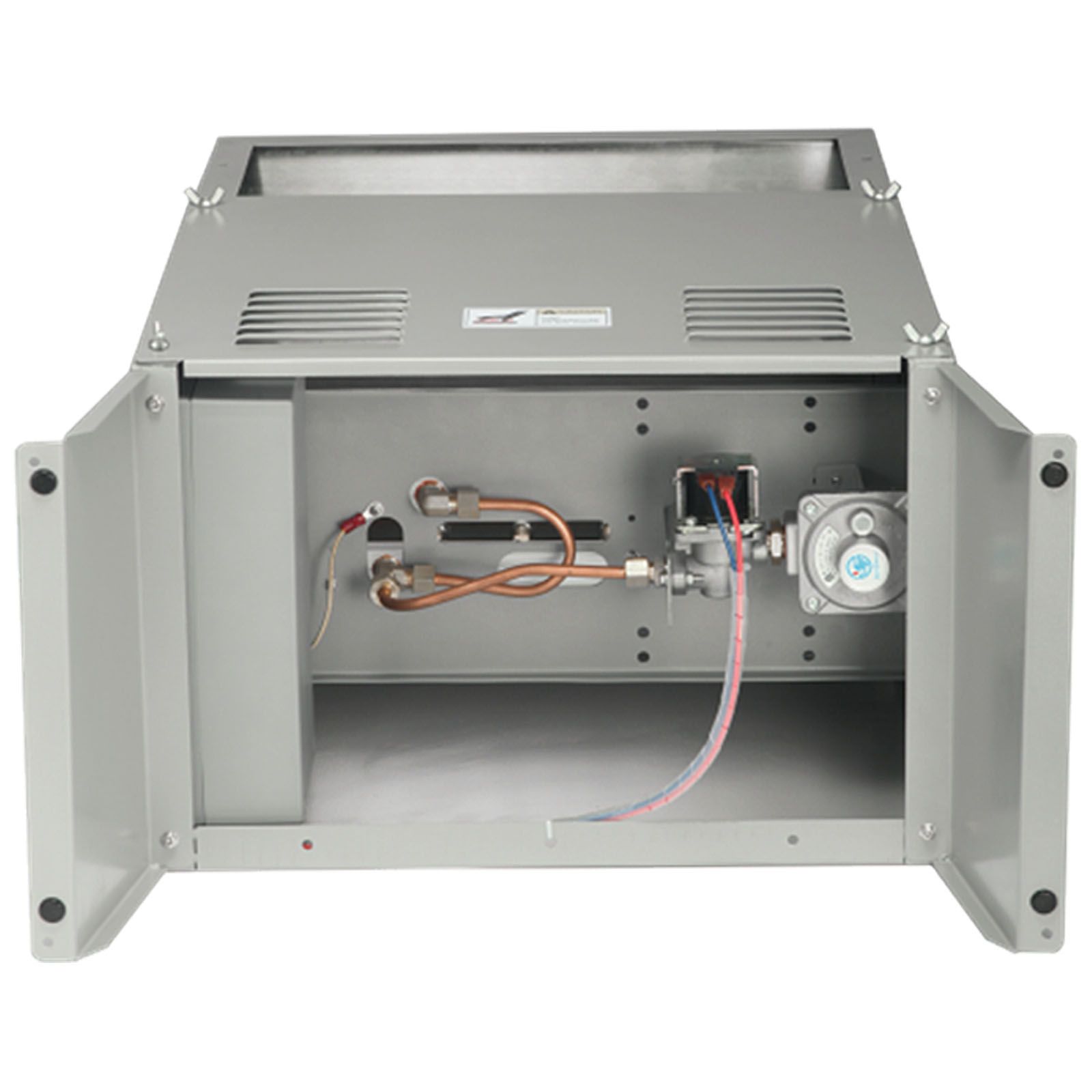

Pro-Leaf CO2 Generator

Features

• No Pilot Flame – The intelligent electronic ignition system removes the need for one.

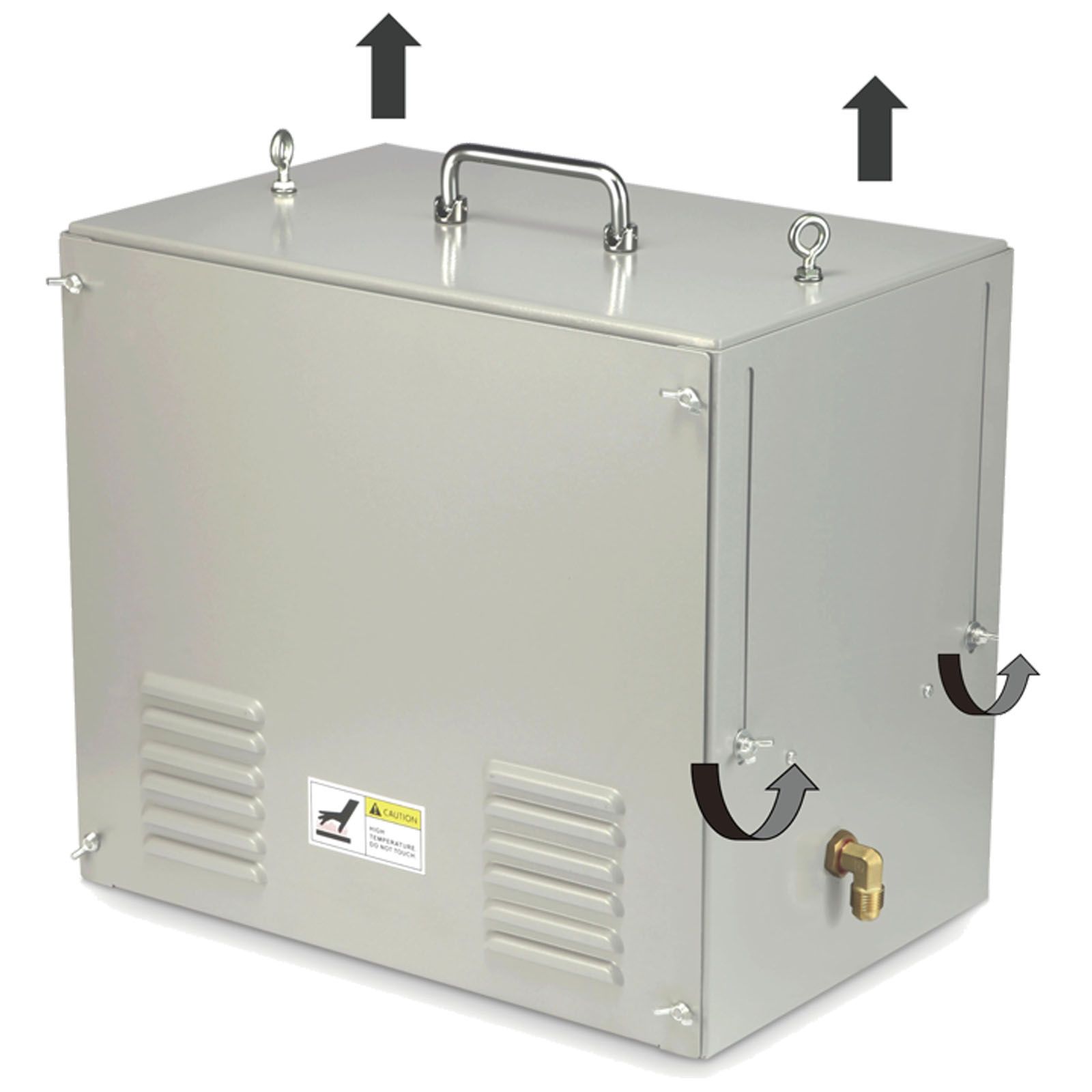

• Suspend It Or Stand It – Suspend it using rope ratchets…Stand it up on the expandable metal leg attachments.
• Solenoid Valve Attachment – This allows you to turn the CO2 supply off & on. Never get a controller without a solenoid valve – you won’t be able to shut off the gas supply completely.
• Tip-Over Safety Switch – Theres also a tip-over switch, which cuts power if the unit isn’t upright.

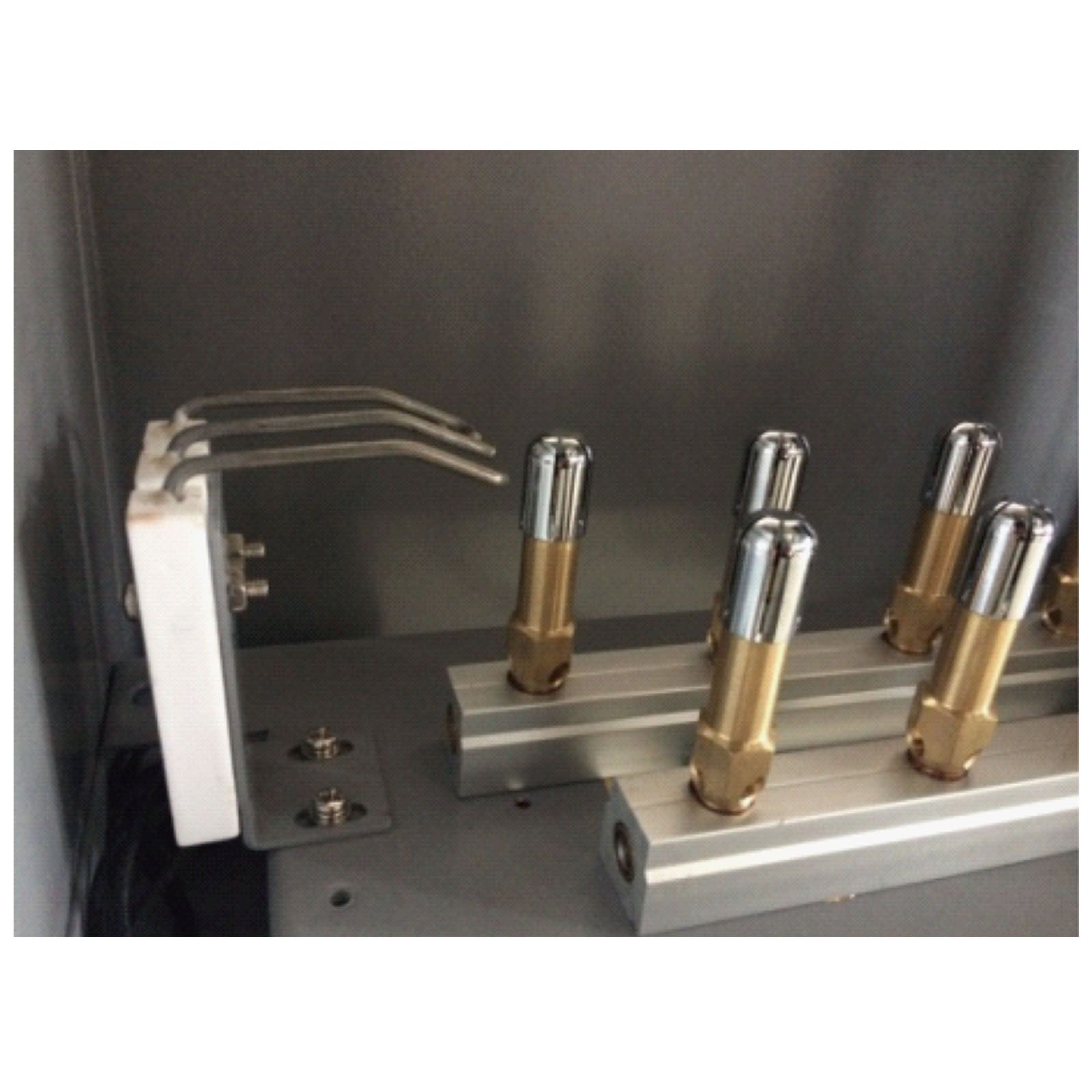

• Minimal Carbon Deposits – To reduce carbon build ups, the brass burners have chrome lined tips.

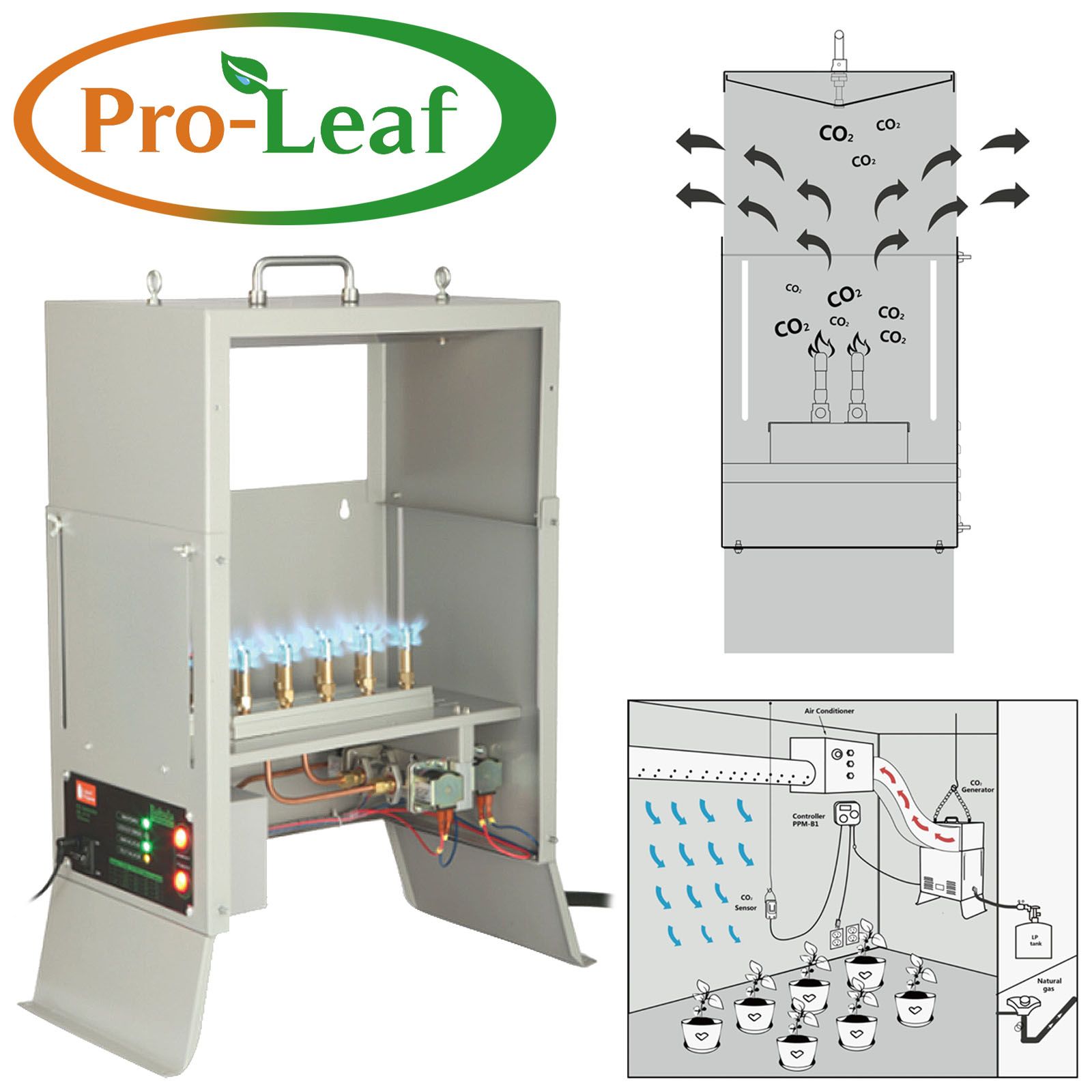

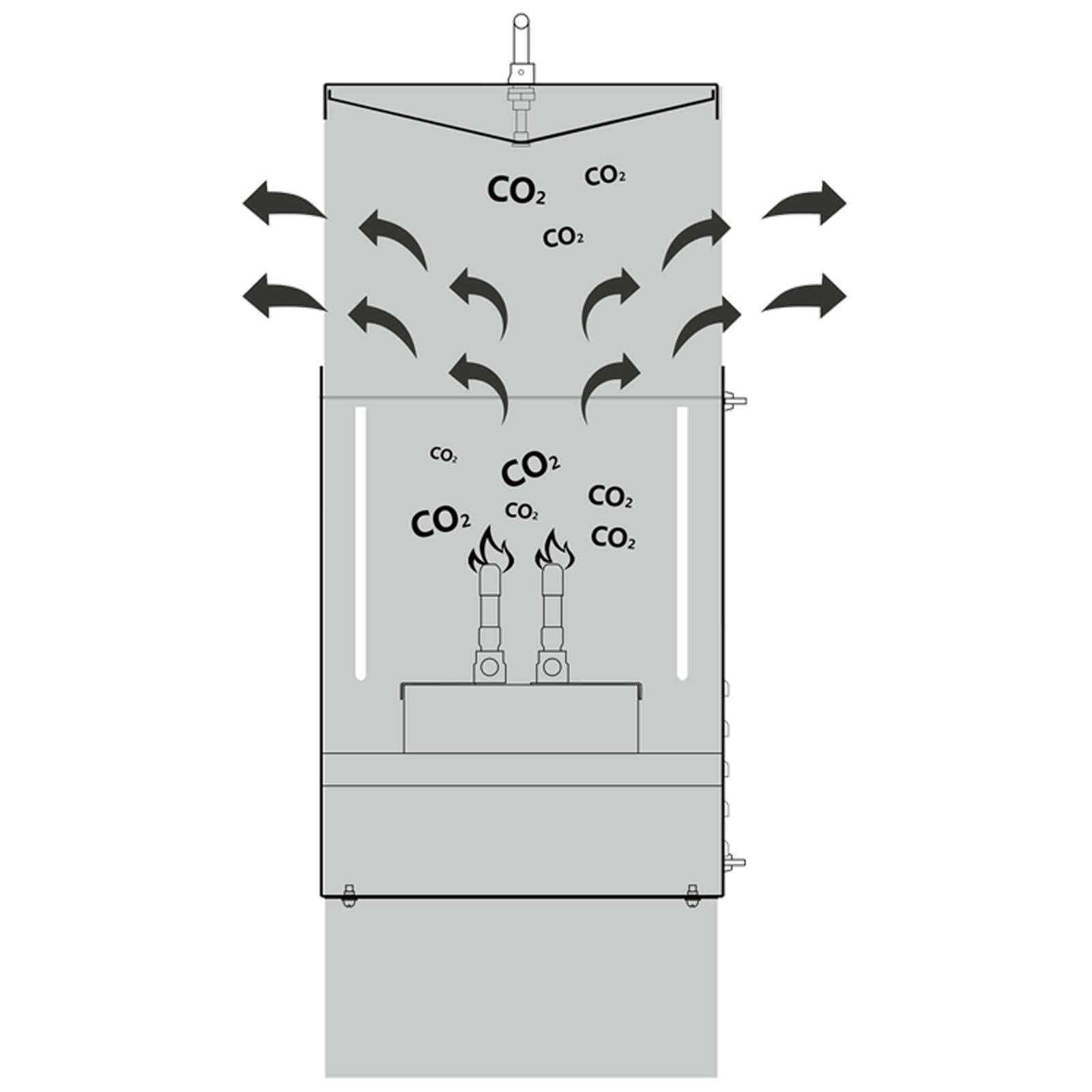

• Even CO2 Dispersion – CO2 is pushed out of both sides of the unit, thanks to the unique ‘V’ shaped internal design.

Why Add CO2?

• Plants use CO2 for photosynthesis (sugar production). If CO2 is restricted, so is sugar production.
• Plants can handle 1000 – 1200ppm of CO2. There’s only around 400 – 450ppm in the air. Tha’ts less than 1/2 the amount they can use!
• Adding CO2 is one of the easiest ways to ramp up sugar production and increases your yield by up to 20%!
• In summer, extra CO2 and also helps plants with heat stress by photosynthesising more!

Kit Contains

• Gas regulator.
• 3.66m hose.
• Hanging hardware.
• Metal feed.
• 24V power adapter.

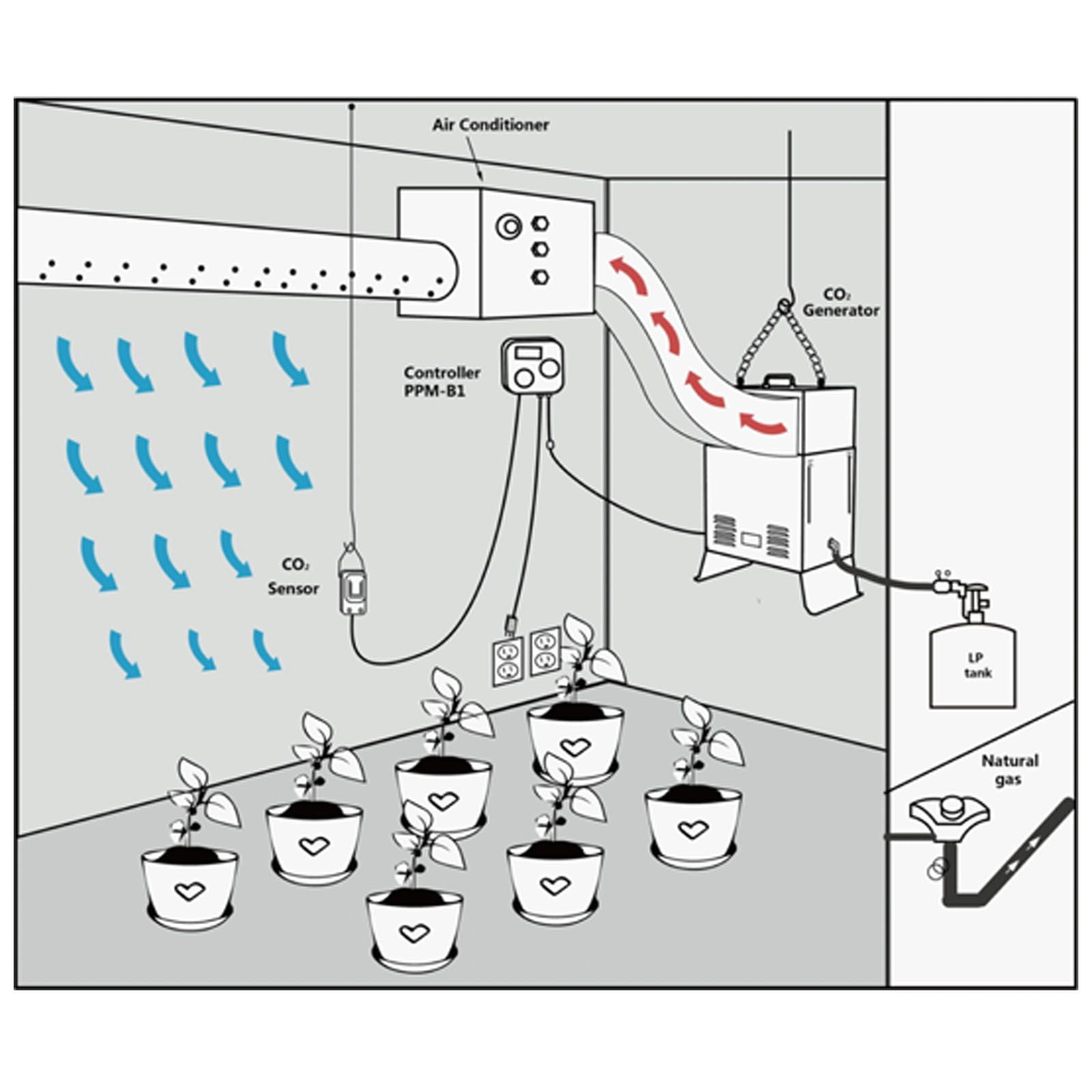

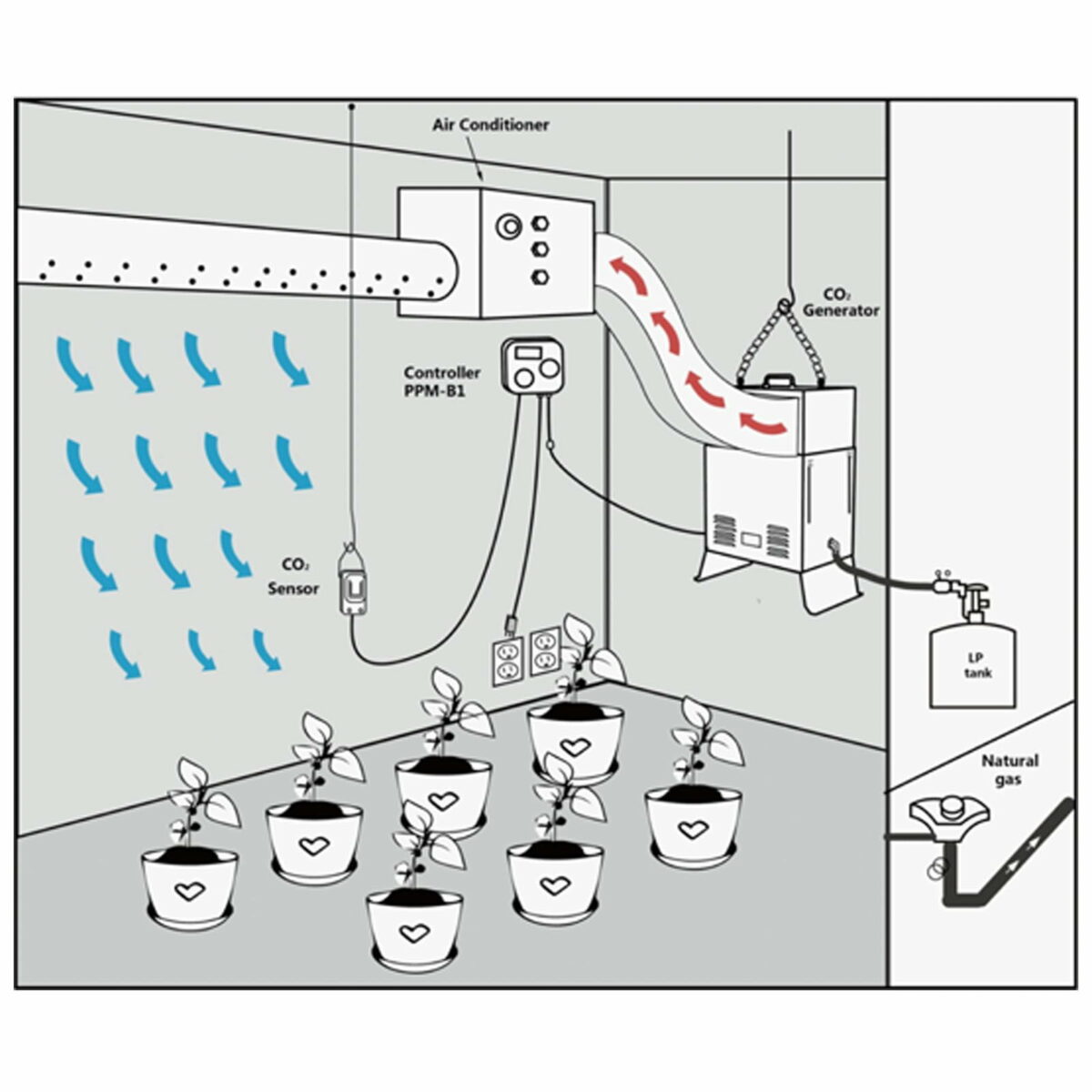

Items Needed

• LPG Generator (This Product).
• Propane cannister (red / orange) – available in most petrol stations or garages.
• UK Propane Regulator (Low Pressure) – typically comes with the cannister.
• CO2 Controller with co2 sensor / analyser.
• Recommended: Hose clamp / gas hose clips, Pipe cutters, Leak detection fluid.

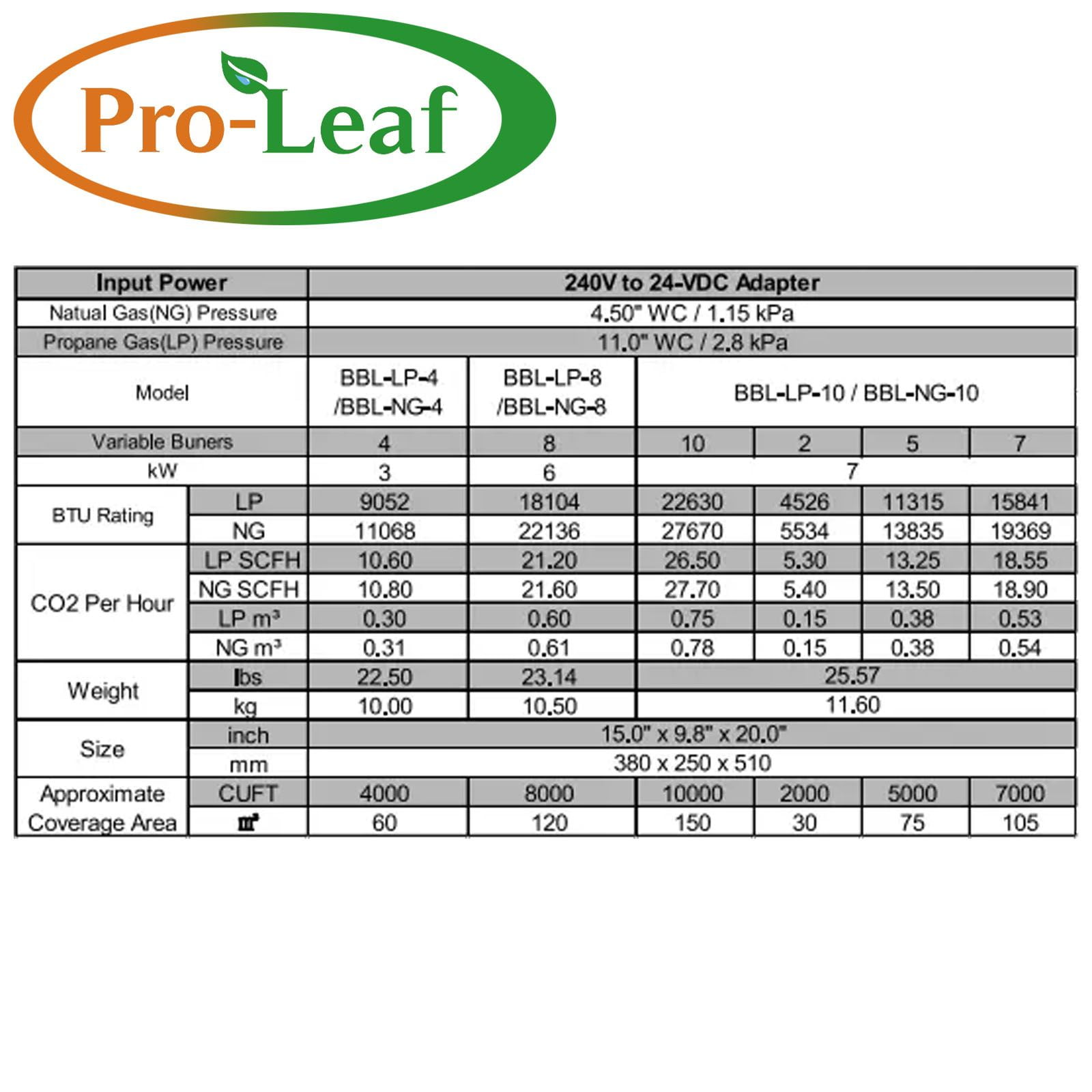

Pro-Leaf Co2 Generator (GEN-LP-4) 4 Burners

• Pro-leaf Co2 Generators convert liquid Propane (LP) or natural gas (NG) into supplemental carbon dioxide for accelerated growth.
• BBL-4 features four burners, with included burner plugs allowing Co2 output modification.
• A full range of safety features ensure reliable operation-electronic ignition replaces an open pilot flame, solenoid valve to restrict gas if the burners do not ignite, and a tip-over swith which cuts power if the unit is not upright.
• Integrated LEDs indicate operational status. Each model comes complete with a gas regulator, 3.66m hose, power adapter and hanging hardware.

Pro-Leaf Co2 Generator (GEN-LP-8) 8 Burners

• Pro-leaf Co2 Generators convert liquid Propane (LP) or natural gas (NG) into supplemental carbon dioxide for accelerated growth.
• BBL-8 features eight and brass burners with included burner plugs allowing Co2 output modifications.
• A full range of safety features ensure reliable operation-electronic ignition replaces an open pilot flame, solenoid valve to restrict gas if the burners do not ignite, and a tip-over swith which cuts power if the unit is not upright.
• Integrated LEDs indicate operational status. Each model comes complete with a gas regulator, 3.66m hose, power adapter and hanging hardware.

Pro-Leaf Co2 Generator (GEN-LP-10) 10 Burners

• Pro-leaf Co2 Generators convert liquid Propane (LP) or natural gas (NG) into supplemental carbon dioxide for accelerated growth.
• BBL-10 features 10 burners with included burner plugs allowing Co2 output modifications.
• The 10-burner BBL-10 offers enchanced functionality with convenient selector swithes operating two, five , seven, or all 10 burners at a time.
• A full range of safety features ensure reliable operation-electronic ignition replaces an open pilot flame, solenoid valve to restrict gas if the burners do not ignite, and a tip-over swith which cuts power if the unit is not upright.
• Integrated LEDs indicate operational status. Each model comes complete with a gas regulator, 3.66m hose, power adapter and hanging hardware.
