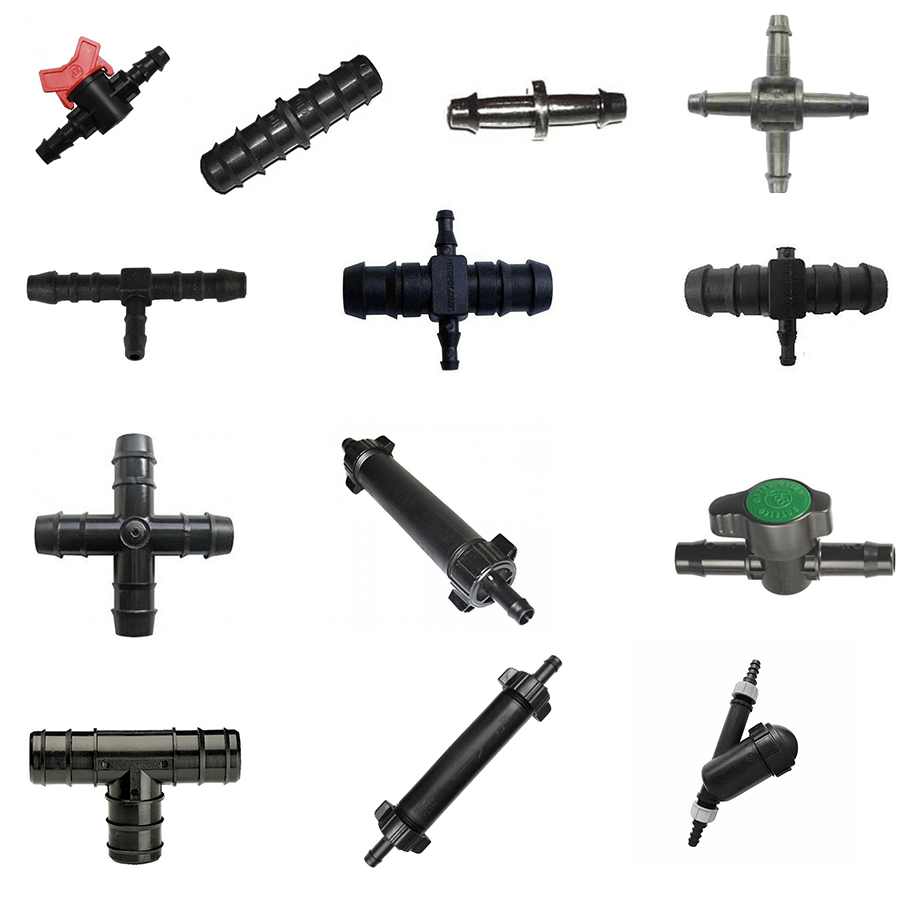

AutoPot Hydroponic System Fittings
16mm Cross Connector
The aim of the 16mm Cross Connector is to simply allow users to be able to connect four pieces of 16mm pipe together. This allows greater flexibility when laying out an AutoPot system and can save space in a grow room.
6mm Cross Connector
One of the most useful AutoPot accessories, the 6mm Cross Connector can be inserted in-line just after the connection to 30 – 47ltr tanks. Furthermore, they can also be added to the end of a pipe system to allow the pipes to be regularly flushed.
16mm Tee Connector
Simply used to connect three pieces of 16mm pipe (hosepipe) together, the 16mm Tee connector is an essential AutoPot fixture.
16mm – 6mm Tee Connector
Perfect for reducing 16mm pipe down to 6mm pipe, the 16mm – 6mm Tee Connector provides a water tight connection unlike any other type of reduction fitting. ideal for use with most types of plastic piping.
16mm Straight Connector
To put it simply, the 16mm Straight Connector is used to connect two pieces of 16mm pipe together. This can be especially helpful when extending AutoPot systems.
6mm Tee Connector
Specially made to fit into 6mm piping, the 6mm Tee Connector allows piping to be branched off towards the AutoPots. They are also ideal for repairing vehicle washer hose connections and air and fuel breather pipes.
6mm Straight Connector
Made from durable plastic, the 6mm Straight Connector just simply connects 6mm pipe to other pieces of 6mm pipe.
16mm Professional Filter
Giving home growers a level of adjustability only seen in commercial grows, the Pro Filter can provide growers with a plethora of different micro options depending on their growing demands. Made out of durable plastic, the 16mm Professional Filter consists of a large drum-shaped filter area and higher micron element for added protection against blockages. Its large size makes it easy to dismantle and clean.
16mm In-Line Filter
Specially made to filter nutrient solutions whilst they travel through 16mm piping, the 16mm In-line Filter is a must have for any AutoPot system.
16mm – 6mm In-Line Filter
With the same features as the 16mm In-Line Filter, the 16mm – 6mm In-Line Filter can connect a piece of 16mm piping to a 6mm counterpart, all whilst filtering out dirt from the passing nutrient solution.
16mm End Stop
Purposely designed to stop water flow, the 16mm End Stop fits into the end of 16mm piping and forms an airtight seal.
6mm End Stops / End Stop
6mm End Stops fit into the end of 6mm piping to form an airtight seal
19mm Top Hat Grommet (23mm Hole Required)
The 19mm TopHat Grommet allows AutoPot users who don’t have access to a 19mm water barrel tap the option to modify the diameter of their water barrels tap hole. A 23mm hole is drilled at the bottom of the tank and the 19mm Top Hat Grommet is inserted into the hole. 19mm pipe (hosepipe) is then pushed into the grommet.
16mm Top Hat Grommet 19mm Hole Required
If you have purchased or are using your own large tank and do not have access to insert a 16mm water barrel tap you can use a 16mm Top Hat Grommet. A 19mm hole is drilled at the bottom of the tank and the 16mm Top Hat Grommet is inserted into the hole. 16mm pipe (hosepipe) is then pushed into the grommet. This will form a watertight connection.
6mm Top Hat Grommet
Specially made to be used with 30 & 47ltr sized tanks, the 6mm Top Hat Grommet is positioned at the bottom of the tank, by firstly drilling a 10mm hole. This allows growers to use 6mm piping in their AutoPot system.
16mm In-Line Tap
Purposely designed to be fitted at the end of 16mm piping, the 16m In-Line Tap is one of the most important features in an AutoPot system. This is because it allows users to flush and clean their system with hardly any effort.
6mm In-Line Tap
Basically the same as its 16mm counterpart, the 6mm In-Line Tap is specially designed to fit 6mm piping and allow AutoPot users to easily flush and clean their systems
Autopot 6mm Cross Connector
Made out of durable non-erosive plastic, the AutoPot 6m Cross Connector allows for four 6mm pieces of piping to be connected together. This is especially helpful when modifying the number of AutoPots within the system.
Autopot 6mm Inline Tap
6mm In-Line taps are a very useful AutoPot accessory. They can be inserted in-line just after the connection to the 30 or 47 ltr tanks which allows users to turn off the water supply if you need to undertake any maintenance. They can also be added to the end of a layout so that now and again you can open the tap and allow the lines to be flushed
Autopot – Cross Connector 2 x 13mm & 2 x 6mm
Specially designed to enable AutoPot users to run 6mm piping off 13mm flexi piping, the 2 x 13mm & 2 x 6mm Cross Connector is a valuable fixture if you’re using a small to medium AutoPot system.
